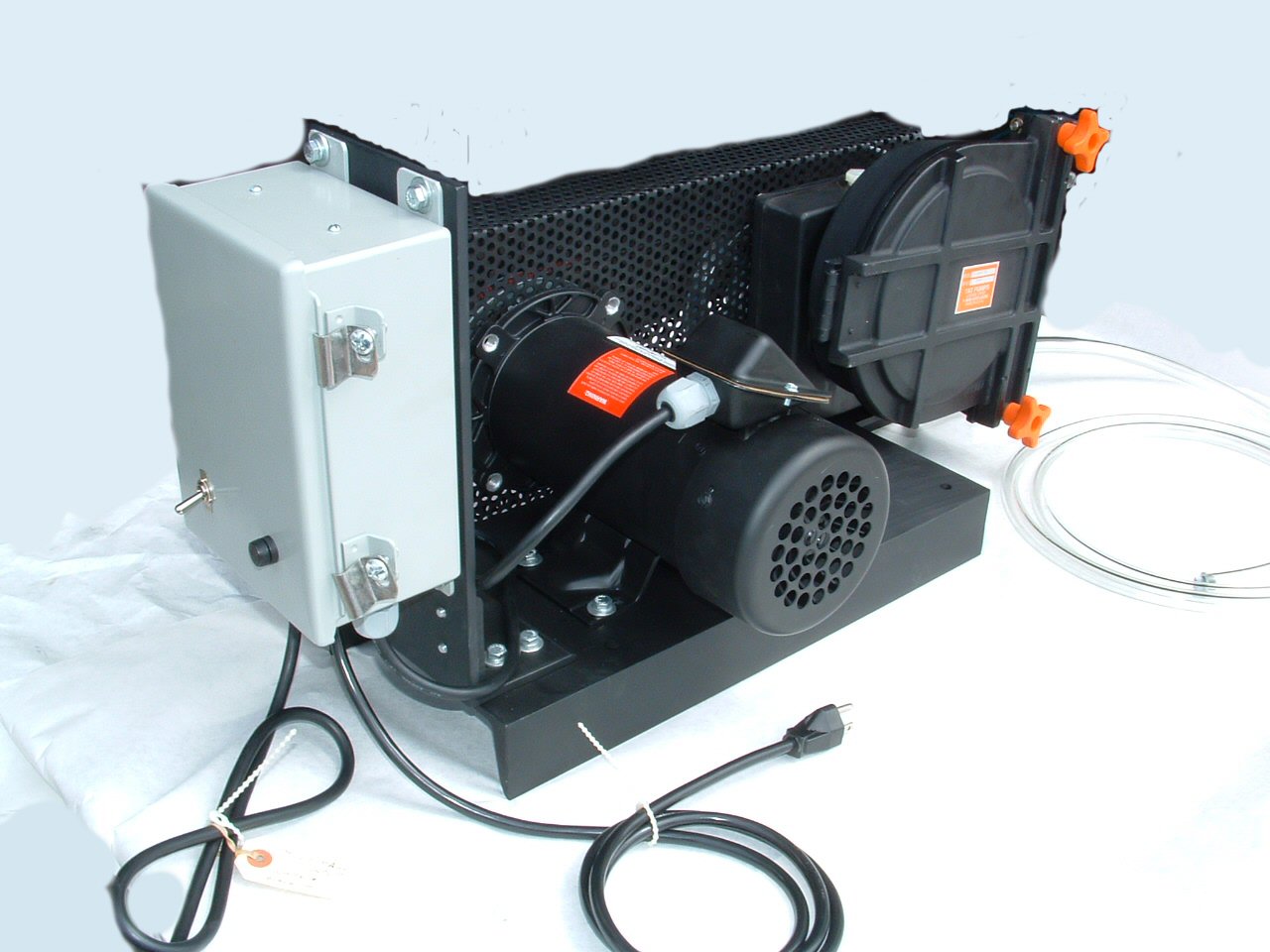

Complete Pump with Adjustable Speed DC Electric Motor

Pump with oil filled, ball bearing, steel gear transmission mounted on 8" x 24" aluminum channel with DC electric drive motor controlled through solid state control with 4-20 mA input signal. Comes complete with 8 ft. grounded power cord with molded plug for 115 V, 60 Hz, single phase outlet. Includes pulleys, belt and belt guard.

FLOW RATE BY TUBING SIZE
Gal./Hr. & Liters/Min.
Model No.
Gearbox Ratio
Pulley Ratio
Pump RPM
3/8" ID
1/2" ID
5/8" ID
3/4" ID
110-63V
14/1
1/1.5
7.5-193.0
3.7-95.0
0.2-6.0
6.1-158.0
0.4-10.0
9.7-250.0
0.6-15.8
16.4-423.0
1.0-26.7


110-63V







Exploded Parts Diagram
HOW TO ORDER THE RIGHT TAT HIGH CAPACITY PUMP TO MEET YOUR SPECIFIC PUMPING NEEDS...
  • Specify Model Number: 110-030, 110-#3A, 110-43E, etc.
  • Specify Tubing Material: Neoprene, Hypalon, etc.
    NOTE: Choose proper Tubing material for fluid to be pumped using Chemical Resistance Chart.
  • Specify Motor Type for Fixed-Speed Electric Pumps by substituting 1, 2, or 3 for # sign (1 for open frame motor, 2 for totally enclosed motor, 3 for explosion-proof motor).
  • All Series 110 Pumps supplied with roller assembly adjustable for 3/32", 1/8", 5/32", and 3/16" tubing wall thickness.
