Complete Fixed Speed Pumps

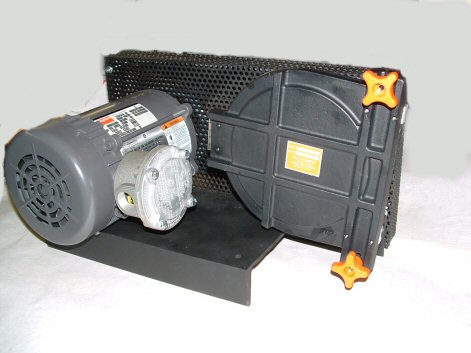

Pump with oil filled, ball bearing, steel gear transmission mounted on 8" x 20" aluminum channel with 1/2 HP, 1725 RPM, 115V, single phase, 60 Hz motor of your choice. Includes pulleys, belt, and belt guard. Order by model number for pump speed/flow and motor type required. Specify tubing material and ID.

FLOW RATE BY TUBING SIZE
Gal./Hr. & Liters/Min.
Model No.
Gearbox Ratio
Pulley Ratio
Pump RPM
3/8" ID
1/2" ID
5/8" ID
3/4" ID
110-2-#*#3A
14/1
4/1
31
15.3
0.97
25.2
1.59
39.9
2.52
76.5
4.26
110-2-#*#3B
14/1
3/1
41
20.5
1.29
33.7
2.12
53.3
3.36
90.0
5.68
110-2-#*#3C
14/1
2/1
62
30.7
1.93
50.5
3.18
79.9
5.04
134.9
8.51
110-2-#*#3D
14/1
1/1
123
61.3
3.87
101.0
6.37
159.7
10.08
269.9
17.03
110-2-#*#3E
14/1
1/1.5
185
92.0
5.80
151.4
9.55
239.6
15.12
404.8
25.54
110-2-#*#3F
14/1
1/2
245
123.0
7.76
202.0
12.75
320.0
20.19
540.0
30.07


NOTE: Replace the #*# above with your motor type choice when ordering.
-0X0   = No Motor
-2E1   = TEFC Motor, 1/2 HP, 1 PH, 115-208/230 V, 1725 RPM
-3E1   = Hazardous Duty Motor, 1/2 HP, 1 PH, 115/230 V, 1725 RPM
-5E1   = Hazardous Duty Motor, 1/2 HP, 3 PH, 230/460 V, 1725 RPM
-6E1   = TEFC Motor, 1/2 HP, 1 PH, 90 V DC Drive
-6F1   = TEFC Motor, 3/4 HP, 1 PH, 90 V DC Drive
-7E1   = TEFC Motor, 1/2 HP, 3 PH, 230/460 V, 1725 RPM
-7E1I  = TEFC Motor, 1/2 HP, 3 PH, 208-230/460 V, 1725 RPM, Inverter Duty










Dimension Drawing
Exploded Parts Diagram
HOW TO ORDER THE RIGHT TAT HIGH CAPACITY PUMP TO MEET YOUR SPECIFIC PUMPING NEEDS...
  • Specify Model Number: 110-030, 110-#3A, 110-43E, etc.
  • Specify Tubing Material: Neoprene, Hypalon, etc.
    NOTE: Choose proper Tubing material for fluid to be pumped using Chemical Resistance Chart.
  • Specify Motor Type for Fixed-Speed Electric Pumps by substituting 1, 2, or 3 for # sign (1 for open frame motor, 2 for totally enclosed motor, 3 for explosion-proof motor).
  • All Series 110 Pumps supplied with roller assembly adjustable for 3/32", 1/8", 5/32", and 3/16" tubing wall thickness.
