PUMP HEAD ONLY, ON 14/1 OIL FILLED, BALL BEARING, STEEL GEAR TRANSMISSION
Provide your own drive to turn transmission shaft to 2800 RPM for 200 RPM maximum pump speed.
Shaft is 5/8" diameter, extends 2" from pump or gearbox case.
Specify tubing material and ID.


MAXIMUM FLOW RATE BY TUBING SIZE
AT 200 RPM MAXIMUM PUMP SPEED
Gal./Hr. & Liters/Min.
Model No.
Gearbox Ratio
Maximum Input RPM
3/8" ID
1/2" ID
5/8" ID
3/4" ID
110-030
14/1
2800
99.6
6.28
163.9
10.34
259.3
16.36
438.1
27.64

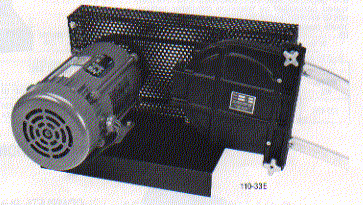

COMPLETE FIXED SPEED PUMPS
Pump with oil filled, ball bearing, steel gear transmission mounted on 8" x 20" aluminum channel with
1/2 HP, 1725 RPM, 115V, single phase, 60 Hz motor of your choice.
Includes pulleys, belt, and belt guard.
Order by model number for pump speed/flow and motor type required.
Specify tubing material and ID.



FLOW RATE BT TUBING SIZE
Gal./Hr. & Liters/Min.
Model No.
Gearbox Ratio
Pulley Ratio
Pump RPM
3/8" ID
1/2" ID
5/8" ID
3/4" ID
110-#3A
14/1
4/1
31
15.3
0.97
25.2
1.59
39.9
2.52
76.5
4.26
110-#3B
14/1
3/1
41
20.5
1.29
33.7
2.12
53.3
3.36
90.0
5.68
110-#3C
14/1
2/1
62
30.7
1.93
50.5
3.18
79.9
5.04
134.9
8.51
110-#3D
14/1
1/1
123
61.3
3.87
101.0
6.37
159.7
10.08
269.9
17.03
110-#3E
14/1
1/1.5
185
92.0
5.80
151.4
9.55
239.6
15.12
404.8
25.54
NOTE: Replace the # above with your motor type choice when ordering.
1 for open frame motor
2 for totally enclosed, fan cooled motor
3 for explosion-proof motor




COMPLETE PUMP WITH ADJUSTABLE SPEED ELECTRIC MOTOR
Pump with oil filled, ball bearing, steel gear transmission mounted on 8" x 20" aluminum channel with
1/2 HP, 70 to 1800 RPM adjustable solid state control, 115 V, 60 Hz, single phase motor.
Includes pulleys, belt and belt guard.



FLOW RATE BY TUBING SIZE
Gal./Hr. & Liters/Min.
Model No.
Gearbox Ratio
Pulley Ratio
Pump RPM
3/8" ID
1/2" ID
5/8" ID
3/4" ID
110-43E
14/1
1/1.5
7.5-193.0
3.7-9.5
0.2-6.0
6.1-158.0
0.4-10.0
9.7-250.0
0.6-15.8
16.4-423.0
1.0-26.7




COMPLETE PUMP WITH VARIABLE SPEED AIR MOTOR
Pump with oil filled, ball bearing, steel gear transmission mounted on 8" x 20" aluminum channel with
1 HP air motor, air pressure regulator and gauge, pulleys, belt, and belt guard.
Pump speed controlled by pressure regulator setting, not to exceed about 30 PSIG for 200 RPM maximum pump speed.
Specify tubing material and ID.



FLOW RATE BY TUBING SIZE
Gal./Hr. & Liters/Min.
Model No.
Gearbox Ratio
Pulley Ratio
Pump RPM
3/8" ID
1/2" ID
5/8" ID
3/4" ID
110-83C
14/1
2/1
50.0-200.0
25.0-100.0
1.6/6.3
41.0-164.0
2.6-10.3
65.0-260.0
4.1-16.4
110.0-438.0
6.9-27.6




-- FOR HAZARDOUS LOCATIONS --
COMPLETE PUMP WITH VARIABLE SPEED DRIVE AND EXPLOSION PROOF MOTOR
Pump with oil filled, ball bearing, steel gear transmission mounted on 13" x 24" base with
ZERO-MAX continuously variable speed control and explosion proof
1/2 HP, 115/230 V, single phase, 60 Hz motor.
Convenient handwheel speed adjuster with reference scale and pointer,
and two shaft/coupling guards included.



FLOW RATE BY TUBING SIZE
Gal./Hr. & Liters/Min.
Model No.
Gearbox Ratio
Pump RPM
3/8" ID
1/2" ID
5/8" ID
3/4" ID
110-35Z
2/1
10.0-200.0
5.0-100.0
0.3-6.3
8.0-164.0
0.5-10.3
13.0-260.0
0.8-16.4
22.0-438.0
1.4-27.6



HOW TO ORDER THE RIGHT TAT HIGH CAPACITY PUMP TO MEET YOUR SPECIFIC PUMPING NEEDS...
  • Specify Model Number: 110-030, 110-#3A, 110-43E, etc.
  • Specify Tubing Material: Neoprene, Hypalon, etc.
    NOTE: Choose proper Tubing material for fluid to be pumped using Chemical Resistance Chart.
  • Specify Motor Type for Fixed-Speed Electric Pumps by substituting 1, 2, or 3 for # sign (1 for open frame motor, 2 for totally enclosed motor, 3 for explosion-proof motor).
  • All Series 110 Pumps supplied with roller assembly adjustable for 3/32", 1/8", 5/32", and 3/16" tubing wall thickness.
