High Capacity Hand Transfer Pump

---

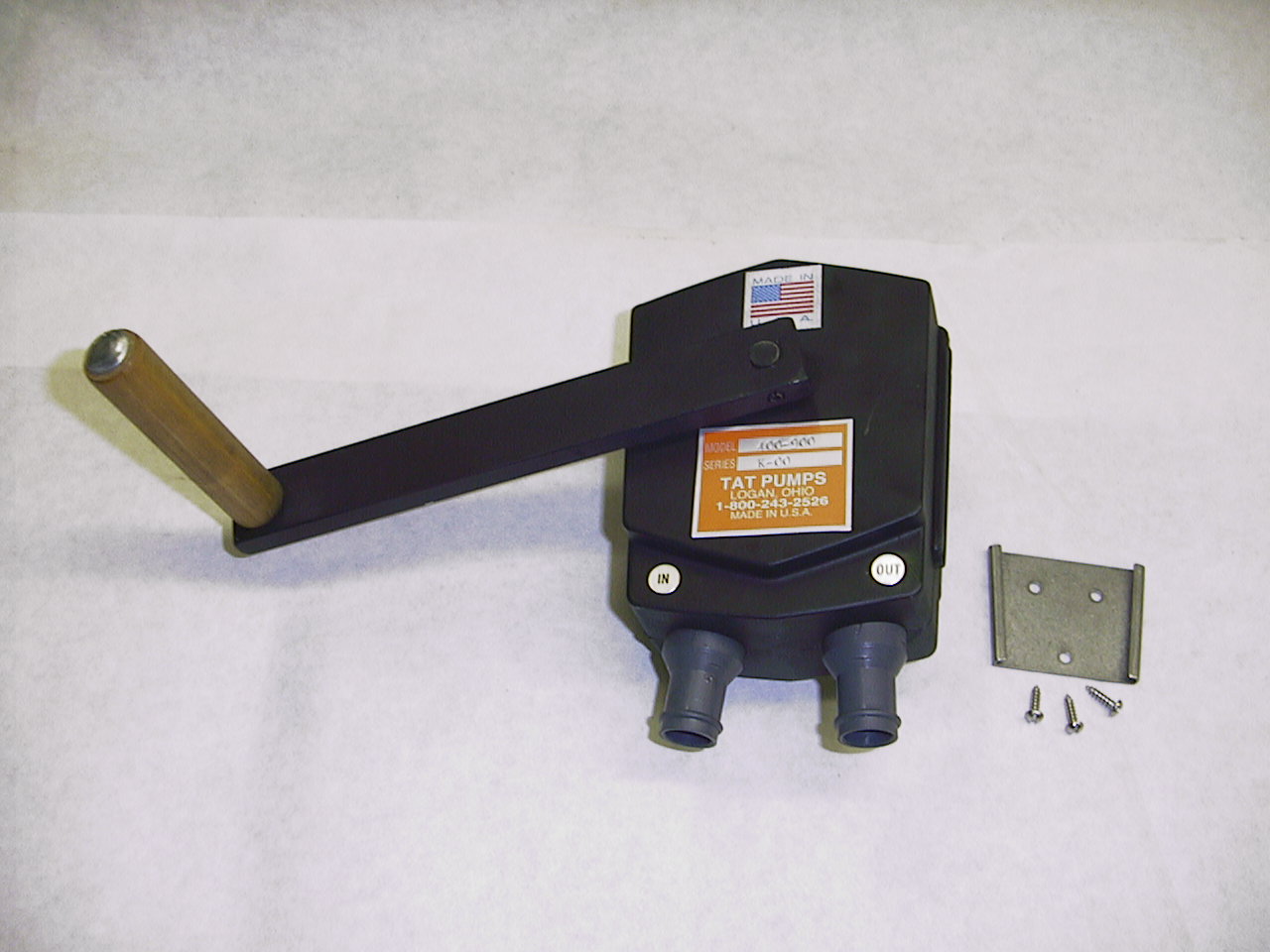

Rotary High Capacity Hand Pump
Model 400-900

Rotary Hand Pump reverses rotation for returning excess fluid or to drain pump. Includes sliding mounting bracket for permanent or temporary mounting. 5/8" I.D. slip-on hose available in Neoprene, Buna "N", Hypalon, Nordel, or Viton. 5 feet suction lift with 10 psi discharge pressure. Capacity of 8 gallons per minute.





Instructions for Use
Dimension Drawing
Exploded Part Diagram with Replacement Part Pricing

Accessories

• Part #812 - Steel and Plastic Drum Adapter

---

HOW TO ORDER Specify Model Number: 400-900 Specify Elastomer Tube Material: Neoprene, Hypalon, etc. Specify Hose Pipe & Expander Material:  PVC, S/S. Teflon NOTE: Choose proper Elastomer Tube & Hose Pipe material for fluid to be pumped using Chemical Resistance Chart. Most Standard TAT Pumps Shipped Within 2 Weeks of Reciept of Order.

---
