Complete Compact Pumps... AC-, DC-, & Air Motor Driven

COMPLETE COMPACT PUMPS
410 SERIES WITH 21/1 GEAR TRAIN


410-2-6A16X was pump 410-66Q

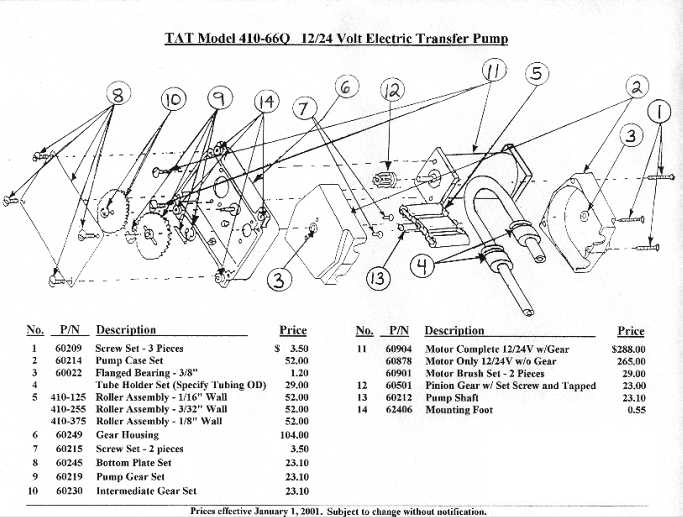

Exploded Part Diagram with Replacement Part Pricing


410-2-6B1CS6 was pump 410-66R

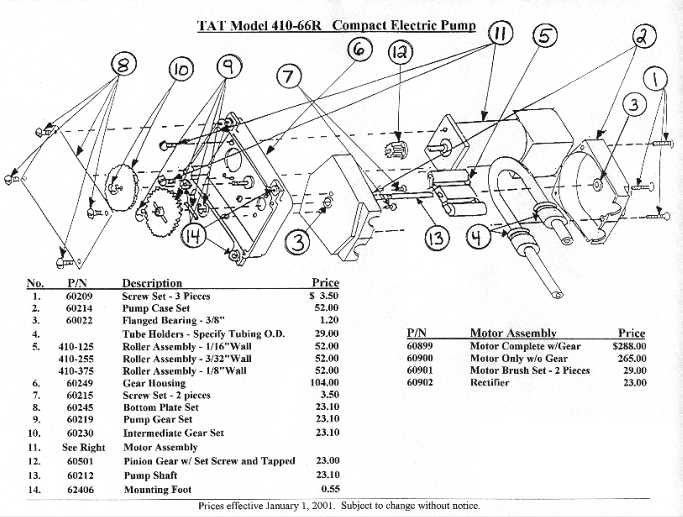

Exploded Part Diagram with Replacement Part Pricing


410-2-8EX6 was pump 410-860
Exploded Part Diagram with Replacement Part Pricing (Not Currently Available)


Pump and motor are mounted on a compact base, coupled through a 21/1 gear train housed in the base. Order by Model Number for type of motor required. Specify tubing material or fluid to be pumped and tubing ID or flow rate desired.


Model No. Motor Type
RPM 		Pump RPM MAXIMUM LIFT AND FLOW RATE BY TUBING SIZE
1/8" ID 1/4" ID 3/8" ID 1/2" ID
MAXIMUM SUCTION LIFT IN FEET 28 FT 28 FT 21 FT 15 FT
410-2-6A16X
was 410-66Q
12 V Input 		12 VDC
1750 		83 2.8 GPH
132 ccm 		7.9 GPH
498 ccm 		14.5 GPH
915 ccm 		23.7 GPH
1495 ccm
410-2-6A16X
was 410-66Q
24 V Input 		24 VDC
4000 		190 4.8 GPH
303 ccm 		18.1 GPH
1142 ccm 		33.2 GPH
2095 ccm 		54.3 GPH
3426 ccm
410-2-6B1CS6
was 410-66R		 115 VAC
1800 		85 2.1 GPH
177 ccm 		8.1 GPH
511 ccm 		14.9 GPH
940 ccm 		24.3 GPH
1533 ccm
410-2-8EX6
was 410-860		 AIR 50-200 1.3-5.1 GPH
82-321 ccm 		4.8-19.1 GPH
303-1205 ccm 		8.7-34.9 GPH
549-2202 ccm 		14.3-57.1 GPH
902-3602 ccm


The pump head used in the above models is the Series 410 pump (described and pictured on the 410 Series opening page) mounted on a common base with the motor coupled through the 21/1 gear train housed in the base. The result is a compact, efficient pump ideally suited to many portable, mobile, marine, and sampling service applications pumping low viscosity fluids.

COMPLETE COMPACT PUMPS
SERIES 410 WITH 9/1 GEAR TRAIN


Pump and motor are mounted on a compact base, coupled through a 9/1 gear train housed in the base. These pumps have a little more than twice the pumping capacity of the pump models that are equipped with the 21/1 gear train. Order by Model Number for type of motor required. Specify tubing material or fluid to be pumped and tubing ID or flow rate desired.


Model No. Motor Type
RPM 		Pump RPM MAXIMUM LIFT AND FLOW RATE BY TUBING SIZE
1/4" ID 3/8" ID 1/2" ID
MAXIMUM SUCTION LIFT IN FEET 28 FT 21 FT 15 FT
410-2-6A18X
was 410-68Q
12 V Input 		12 VDC
1750 		194 18.4 GPH
1161 ccm 		33.7 GPH
2126 ccm 		55 GPH
3470 ccm
410-2-6A18X
was 410-68Q
24 V Input 		24 VDC
4000 		444 42.4 GPH
2675 ccm 		77.7 GPH
4902 ccm 		127 GPH
8012 ccm
410-2-6B1CS8
was 410-68R		 115 VAC
1800 		200 19 GPH
1199 ccm 		34.9 GPH
2202 ccm 		57 GPH
3596 ccm
410-2-8EX8
was 410-880		 AIR 100-400 9.6-38.2 GPH
606-2410 ccm 		17.4-69.8 GPH
1098-4404 ccm 		28.6-114.2 GPH
1804-7205 ccm


The pump head used in the above models is the Series 410 pump (described and pictured on the 410 Series opening page) mounted on a common base with the motor coupled through the 9/1 gear train housed in the base. The result is a compact, efficient pump ideally suited to many portable, mobile, marine, and sampling service applications pumping low viscosity fluids.

HOW TO ORDER THE RIGHT TAT HIGH CAPACITY PUMP TO MEET YOUR SPECIFIC PUMPING NEEDS...
  • Specify Model Number: 410-#1Z, 410-66Q, 410-66RZ, etc.
  • Specify Tubing Material: Neoprene, Hypalon, etc.
  • NOTE: Choose proper Tubing material for fluid to be pumped using Chemical Resistance Chart.
  • Specify Motor Type for Fixed- or Variable-Speed Electric Pumps by substituting 1, 2, or 3 for # sign (1 for open frame motor, 2 for totally enclosed motor, 3 for explosion-proof motor).
  • All Series 410 Pumps supplied with roller assembly and tube retainers for tubing diameter requested.

Most Standard TAT Pumps Shipped Same Day Order Received.
